Overview
The TNS-100 is an industrial temperature rated, VLAN-aware, Layer 2 data and power distribution switch. The TNS-100 features an included mounting adapter for applications requiring DIN rail installation.
The TNS-100 has a total of 6 ports:
- 4 x 2.5Gbps NBASE-T ports with software controlled PoE out (max of .8A per port)
- 1 x 2.5Gbps NBASE-T port with PoE-in (max of 1A)
- 1 x 10Gbps SFP+ port
The PoE in port can be used for powering the device as well as powering devices on the PoE out ports, and for applications requiring more than 1A of power, there is a DC barrel jack that can be used with an optional power adapter to supply up to 4A of power.
Management of the TNS-100 is provided via a web interface, SNMP, or RESTful API to give very flexible options for different applications.
Management VLANs are supported as well as access and VLAN trunking. Other features include port isolation and remote PoE power reset.

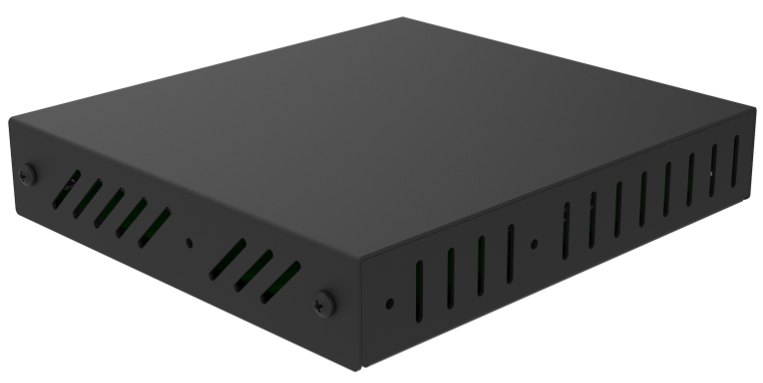

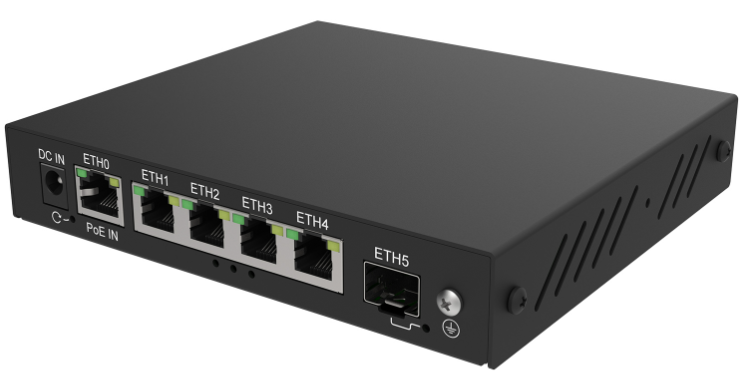

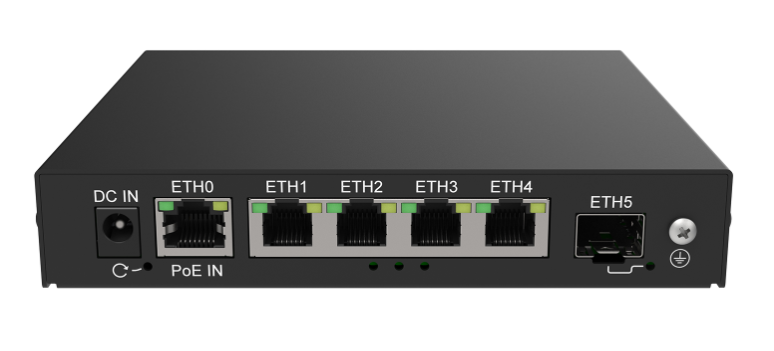

Product Images
 |  |  |
