Overview

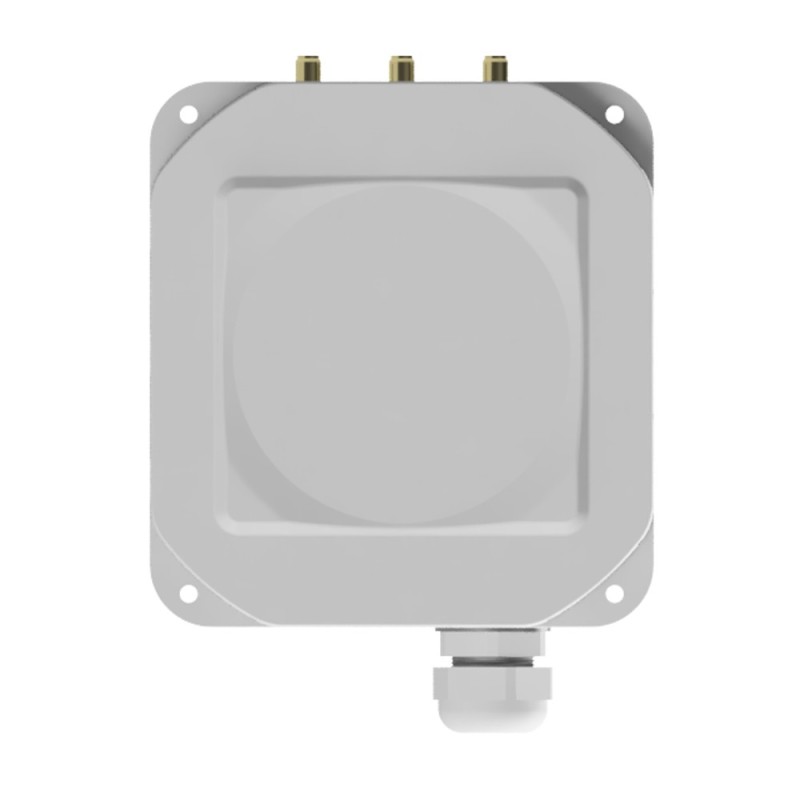

The TNA-305X is our first full-band 60 GHz radio with an integrated 5-7 GHz backup link (frequency range country-dependent). It's fully compatible with our existing antenna kits and interoperable with the rest of our current radio lineup.



Key features:

  • 57 to 71GHz full band support with AP/PTP/Client modes, software configurable
  • 5 to 7 GHz integrated backup radio with internal or external antennas supported (RP-SMA)
  • 1 X 2.5Gbps Active PoE-in ethernet port
  • Compatible with current antenna kits
  • 2.4GHz management radio, GPS support included
  • Compact design


Modular Configurations


  ModelBeam steeringAntenna gainMounting bracket
  TNA-305x base model
  (no kit)		90° x 50°16 dBiPole or wall-mountable via backplate
  TNA-AK-100
  100 mm antenna kit		6° x 6°33 dBi L-style bracket included
  TNA-AK-150
 150 mm antenna kit		4° x 4°37 dBiNot included

(TNA-M-P precision mount recommended)
  TNA-AK-300
  300 mm antenna kit		2° x 2°42 dBiNot included

(TNA-M-P precision mount recommended)
  TNA-AK-S-45
45° scanning kit		45° x 5°30 dBiNot included

(TNA-M-P precision mount recommended)
  TNA-AK-S-90
  90° scanning kit		90° x 5°30 dBiNot included

(TNA-M-P precision mount recommended)


* Max distance using channels 5 or 6, with some rain fade included.  Please refer to the link calculator to see more accurate results for your rain region.

Aiming Accessories


You can download the STEP file for the TNA-305X aiming tool here and 3D print it at your home or office.
